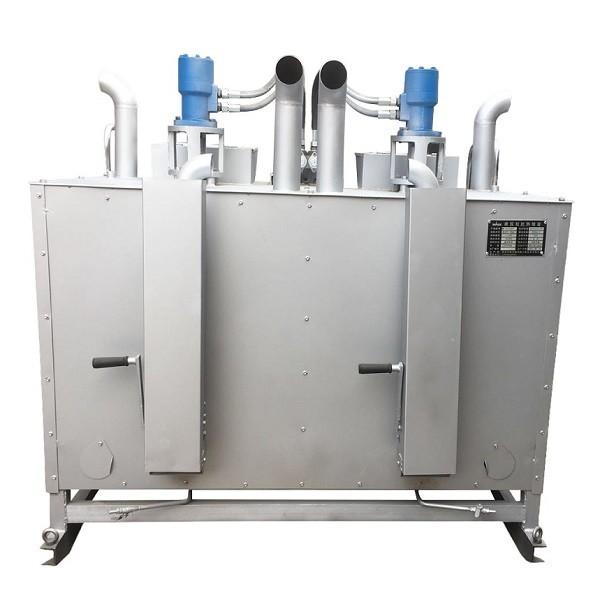

Thermoplastic preherater boiler melter for road marking
General discription
Thermoplastic applicator is one of the main equipment for the construction of thermoplastic road line marking. the powder thermoplastic paint is heated and stirred inside thermoplastic applicator to become liquid, and then the liquid paint put into the marking machine for marking construction purpose. The melting level of paint is directly related to the road line marking quality, so the thermoplastic applicator is the key component of the thermoplastic line marking equipment and an indispensable part of the paint melting. The thermoplastic applicator is usually suitable for various thermoplastic marking projects such as parking lot, urban road surface and national and provincial road surface.
WAGE thermoplastic applicator has the following functional characteristics:
1. Stainless steel cylinder block and alloy high-carbon steel pot bottom are adopted. Thermal insulation material is installed between inner liner and outer cover plate of the kettle.
2. thermoplastic kettle with two cylinders running independently can heat two kinds of paints at the same time. Vertical paddle mixer ensures more uniform melting of paints.
3. Specially designed overload overflow device/overload automatic protection device to ensure construction safety;
4. Fuel-fired and gas-fired heating systems can choose combustion modes which are beneficial to construction according to the external climate conditions and needs, so as to make fuel addition more flexible and economical. For example, fuel-fired heating systems are not easily affected by wind, and the melting materials are faster and more efficient, and can adapt to various construction environments such as strong wind and high altitude.
Perameters for all type you can choose
|  Parameter
Model | HG-800 | HG-Q1000 | HG-Q1500 | HG-Y1000 | HG-Y1500 | HG-1000 | HG-1500 | HG-600 | HG-300 |
| Equipment type | Hydraulic Double cylinder( GAS type) | Hydraulic Double cylinder (Diesel type) | Hydraulic Double cylinder (Gas and Diesel type) | Mechanical(gas type) |
| Heating system | Direct Injection Gas Furnace, Plum-shaped Spark Head | Cyclone Fuel Furnace | Cyclone Furnace for Fuel and Gas Dual Use | Direct Injection Gas Furnace, Plum-shaped Spark Head |
| Diesel motor | 15PS Electric starter water-cooled type | 16.5PS Electric starter water-cooled type | 16.5PS Electric starter water-cooled type | 16.5PS Electric starter water-cooled type | 16.5PS Electric starter water-cooled type | 16.5PS Electric starter water-cooled type | 16.5PS Electric starter water-cooled type | 8.0PS water-cooled type | 6.5PS water-cooled type |
| Hydraulic pump pressure | Pressure Max 20Mpa | Pressure Max 20Mpa | Pressure Max 20Mpa | Pressure Max 20Mpa | Pressure Max 20Mpa | Pressure Max 20Mpa | Pressure Max 20Mpa | / | / |
| Hydraulic pump Rotation rate (r/min) | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | / | / |
| Cylinder capacity | 400kg*2 | 500kg*2 | 750kg*2 | 500kg*2 | 750kg*2 | 500kg*2 | 750kg*2 | 300kg*2 | 300kg*1 |
| Hydraulic fluid tank capacity | 80L | 80L | 80L | 80L | 80Lx2 | 80L | 80L | / | / |
| Diesel tank capacity | / | / | / | 40L | 40L | 40L | 40L | / | / |
| Gas pipe connector | 2 | 2 | 2 | / | / | 2 | 2 | 2 | 1 |
| size(mm) (L*W*H) | 1800*1500*1600 | 1900*1700*1700 | 1800*1900*1800 | 1900*1750*1800 | 1900*1750*1800 | 1900*1750*1800 | 1900*1750*1800 | 1320*1350*1450 | 1320*750*1450 |
| Weight | 850kg | 1000kg | 1200kg | 1100kg | 1250kg | 1100kg | 1250kg | 480kg | 320kg |
Construction
